Feature Overview

SECTFILL() Fill sector shape.

  • The start and end angles are specified from 0 to 1.
  • If the difference between the start angle and the end angle is 0.5 or more, it is a semicircle, and if the difference is 1 or more, it is a circle.
  • If the start position is higher than the end position, it is replaced.
  • This function consumes 428 Token. (segfill & trifill ver: 185 Token + segfill + trifill)

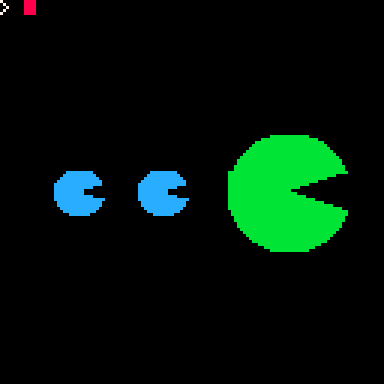

-- Draw the Mouth characters

sectfill(96,64,20,11,-0.2,0.9)-- x, y, size(radius), color, start angle, distance
sectfill(54,64,8,12,-0.2,0.9)
sectfill(26,64,8,12,-0.2,0.9)

release note

v0.2

  • stabilization of the bottom shape.
  • short arcs do not display segments.
  • the radius and y coordinate arguments are converted to integers.
  • update to the latest segfill.

v0.1

  • first release

Drawing Related Posts

7

I have updated sectfill() to v0.2!

  • stabilization of the bottom shape.
  • short arcs do not display segments.
  • the radius and y coordinate arguments are converted to integers.
  • update to the latest segfill.
3

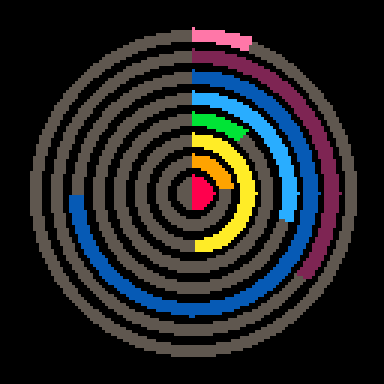

Woah it's that one idle game!

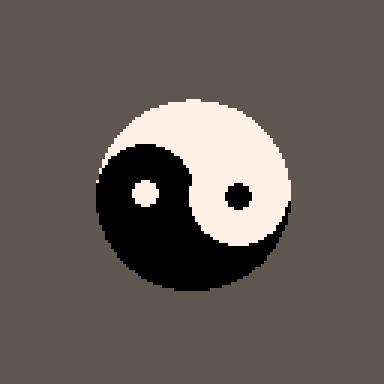

And some yinyang!

It was a little confusing that it starts at the top instead of the right, and goes clockwise instead of counterclockwise, but it works pretty good! There's a little bit of weird flickering but that's fine
1

@0xFFFF967F

Nice! Super sample art!

Yes, it's true that the way angles are handled needs to be revised according to pico-8 standards.

(I didn't care about that difference when I was making this code)

Anyway, thanks for your interest!
